Berxel Photonics Co., Ltd.

mHawk P100R

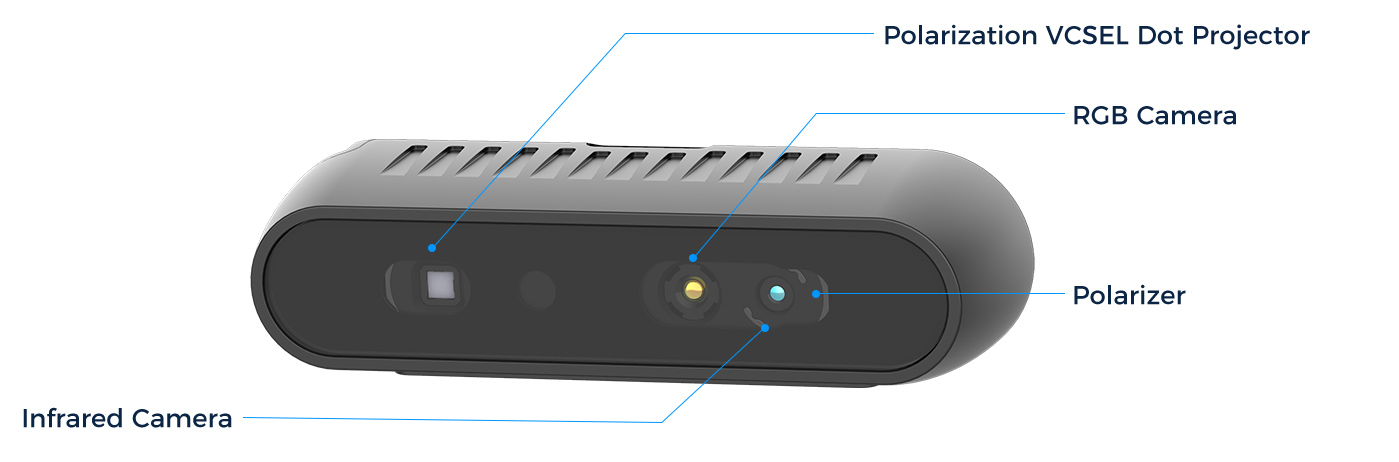

Novel 940nm Single Linear Polarized HCG VCSEL

High precision with 1000 x polarization extinction ratio

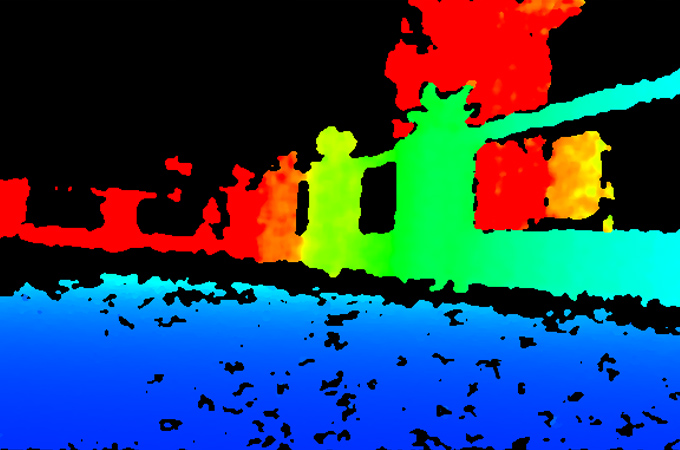

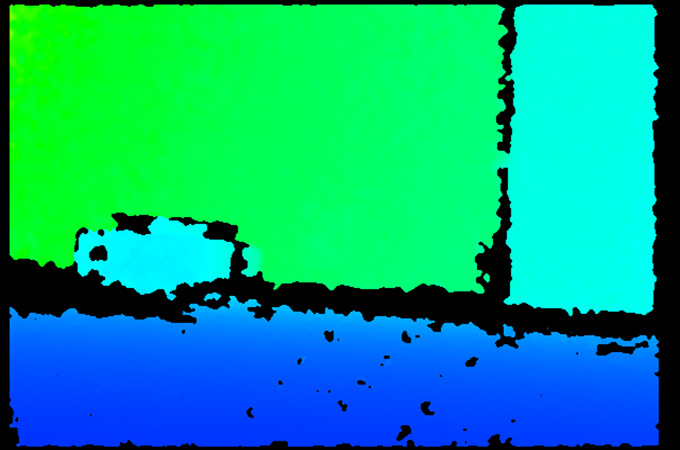

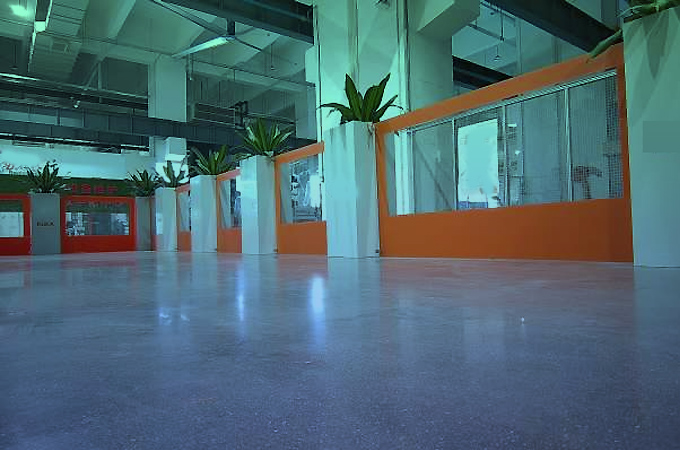

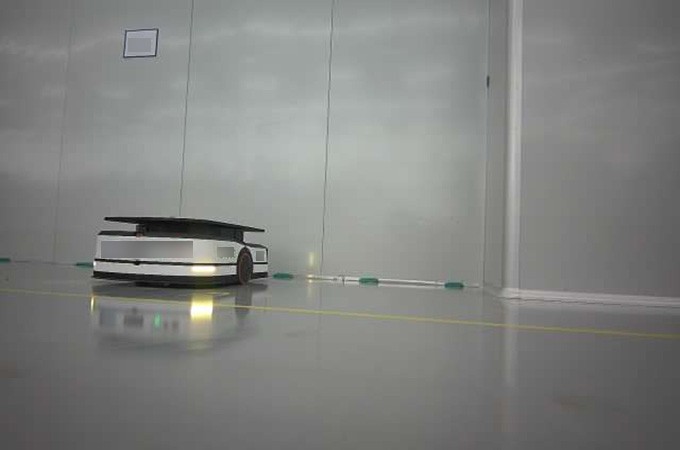

High quality output for depth, RGB and Infrared synchronously

Applications :

Best positioned for robotics, logistics and AloT application scenarios requiring elimination of multi-path reflection noises

High precision with 1000 X polarization extinction ratio

See the camera in action

Technical Parameter

Datasheet

Specification

Size

90 mm x 25 mm x 25 mm

Support operating system

Windows / Android / Linux

Weight

72 g

Data protocol

UVC

Parameter

Resolution / Frame

1280 x 800 @ 7 fps / 640 x 400 @ 30 fps

Relative accuracy

1 mm @ 60 cm

Depth / Frame

1280 x 800 @ 7 fps / 640 x 400 @ 30 fps

FOV

72°(±3°) x 50.5°(±3°)

Features

Range

0.3 m ~ 8.0 m

Eye safety

Support

Laser safety

Class 1

Environment

Indoor / Outdoor

Operation reliability

- 10 ~ 60°C

Average power

< 2.2 W

Interface

Type C USB 2.0
