Berxel Photonics Co., Ltd.

・850 nm multimode emission

・Data rates up to 106 Gbps

・Up to 15dB Side-Mode Suppression Ratio

・0.12 nm Super-Narrow RMS Spectral Width

・6-inch process, high volume and uniformity

・GR 468 reliability compliant

・IEEE 802.3db performance compliant

・Up to 300 m OM3 Fiber Transmission

・Optical transceiver, active optical cable for AI computing and cloud data center

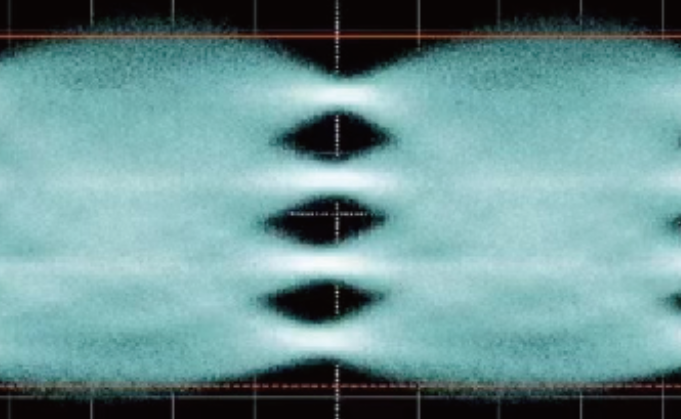

106 Gbps PAM4 HCG VCSEL Typical Eye diagram

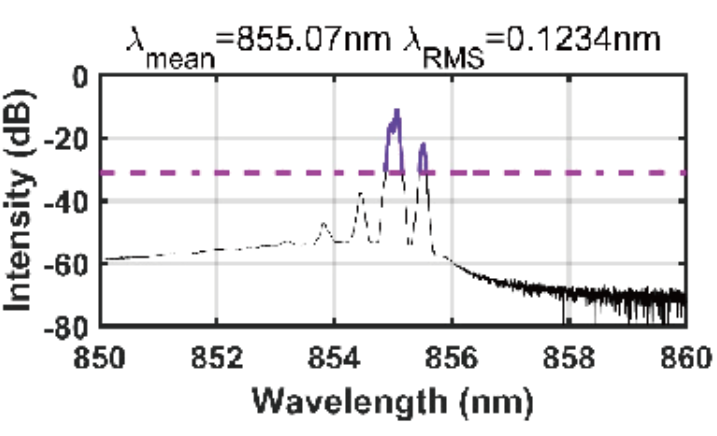

106 Gbps HCG VCSEL Spectrum

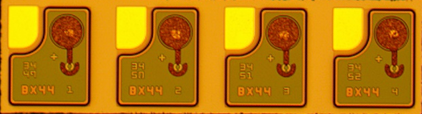

1x1 singlet and 1x4 arrays alpha sample

Characteristics

	106 Gbps PAM4 HCG VCSEL
Working Temperature (Module Case Temperature)	(0 – 70 °C)
Modulation Bandwidth	25 GHz
RINOMA	< -139 dB/Hz
Data Transmission Distance	Up to 300 m OM3 Fiber Transmission
Estimated Wear-out Life	> 10 years
Die Dimensions for 1X4 array	980 um (Width) * 265 um (Length) * 150 um (Thickness)

Notes:

CTR: 0 °C to +70 °C (32 °F to +158 °F)

ITR: -40 °C to +85 °C (-40 °F to +185 °F)

ESR: 25 Gbps ESR means 300m data transmission
