・850nm multimode emission
・Data rates up to 106 Gbps
・6-inch process, high volume and uniformity
・GR468 reliability compliant
・IEEE 802.3db performance compliant

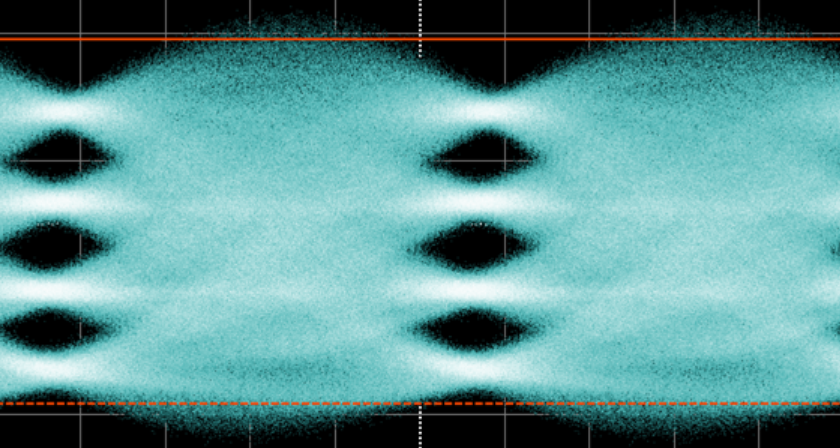

| 106 Gbps PAM4 VCSEL | |
| Working Temperature (Module Case Temperature) |
(0 – 70 °C) |
| Modulation Bandwidth | 25 GHz |
| RINOMA | < -139 dB/Hz |
| Data Transmission Distance | 50 or 100 m |
| Estimated Wear-out Life | > 10 years |

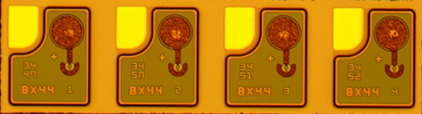

| Die Dimensions for 1X4 array | 980 um (Width) * 265 um (Length) * 150 um (Thickness) |
Notes:CTR: 0 °C to +70 °C (32 °F to +158 °F)
ITR: -40 °C to +85 °C (-40 °F to +185 °F)
ESR: 25 Gbps ESR means 300 m data transmission
